S20-3HY Inline Hygienic Style 3A Certified

S20-3HY Inline Hygienic Style 3A Certified

Example application: measures 0-20% milk fat. 3" Triclover fitting. Install directly into food product lines.

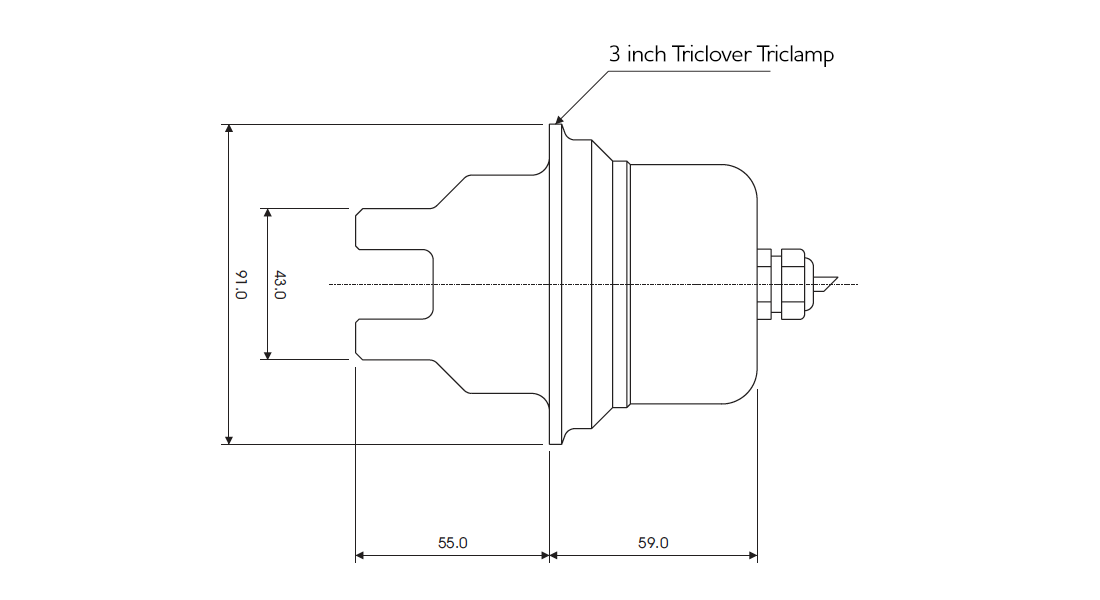

Dimensions:

S20-3HY Inline Hygienic Style 3A Certified

Key features:

Self-compensating

Multi-beam sensor, virtually eliminates drift due to contamination or electronic ageing.

One-piece body

No lenses to leak, glass-free design.

Simple to use

Simple user interface

Reliable

Accurate, repeatable & reliable.

S20-3HY Inline Hygienic Style 3A Certified

Example applications:

Hygienic style sensors are designed for installation directly into food product lines where CIP cleaning is used.

Most commonly used sensor in a wide range of applications including solids recovery, CIP control, fat percentage monitoring, separator control, and loss monitoring.

Further specifications:

Accuracy

+/- 2% of reading

Repeatability

+/- 1% of reading

Temperature

0 to 85°C operating range

Pressure

10 Bar

Cable

Polyurethane-covered cable rated to 95°C. Extension cables can be supplied to extend the cable up to 50m.

Transmitter

Quadbeam MD75 or MXD73

Body Style

Hygienic Style Body with 3” Triclover fitting



Wave Length

880nm - Standard. Other wave lengths available

Body Material

PP - Polypropylene

Cable

10m - Both immersion and hygienic sensors are supplied with a 10m cable as standard. Other lengths available

Connector

NC- No Connector. Cores stripped and crimped for direct connection with the MXD Transmitters CA - Amphenol Connector. For use with Hygienic sensors using extension cables. Sample model no; S20-IMM-880-PP-10-NC

Optional Extras

Cleaner - powered using air at 10 Bar.
